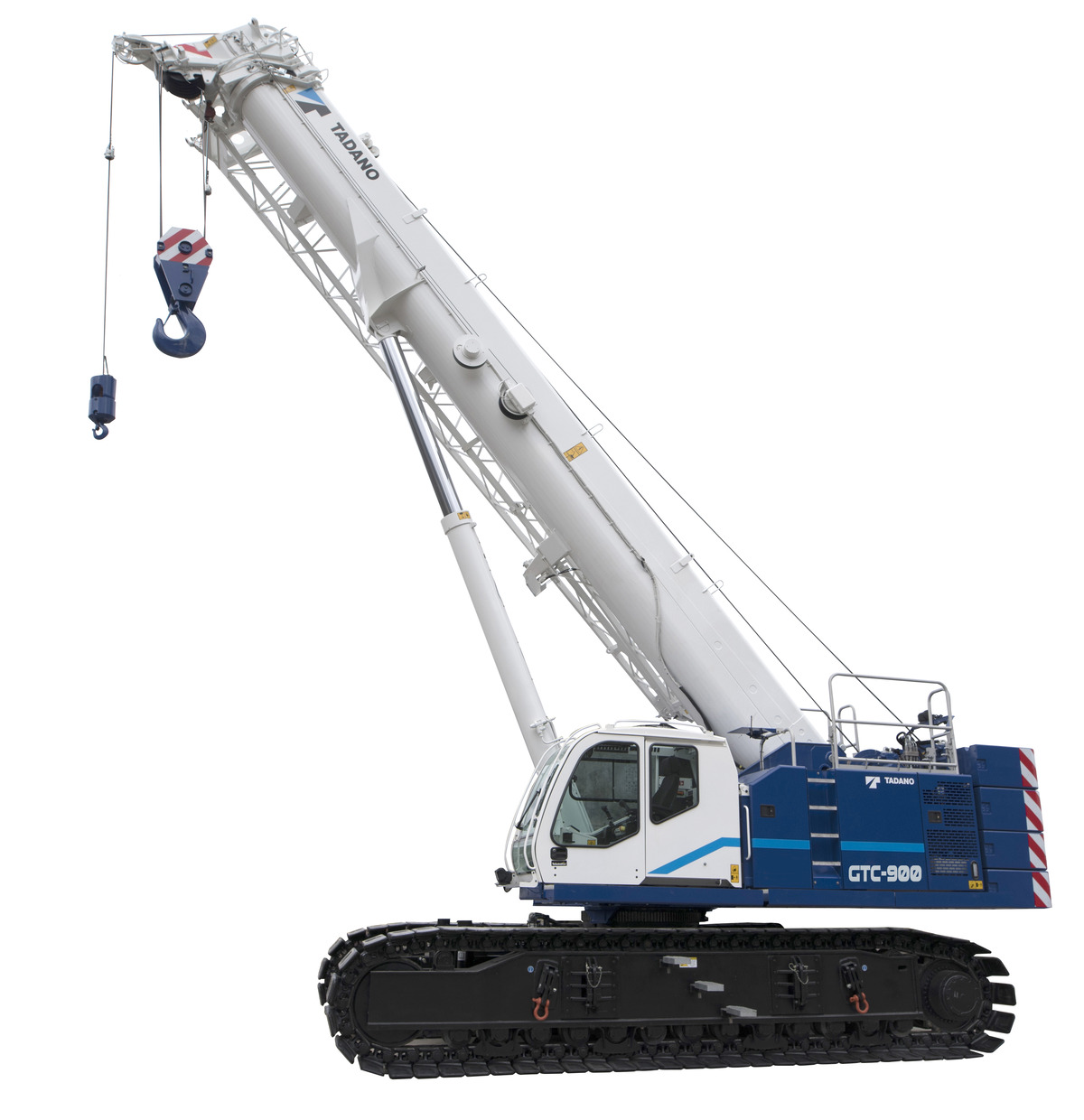

GTC-900
Produkta apraksts
Five-section boom handles foundations to high lifts The GTC-900 is an 90t capacity machine with a full power, 5-section 11.5m-43m hydraulic boom designed to perform well for lift work, while also being capable of out‐of‐level, pick‐and‐carry, and foundation work. The main boom is complemented with a 10.1m / 17.7m bi‐fold jib that offsets at 3.5°, 25°, and 45°. The maximum lifting height with the jib erected is 60.4m. An optional 2.5m heavy lift jib with a maximum capacity of 21.4t that offsets at 3.5° and 30° is also available.
Preces specifikācija
Ietilpība
90 t
90 t
Galvenā masta garums
11.5 m – 43.0 m
11.5 m – 43.0 m
Maksimālais pacelšanas augstums
60.4 m
60.4 m
Maksimālais pretsvārstekļu svars
20,411 kg
20,411 kg
Izplestās sliedes platums
5.42 m
5.42 m
Savilktās sliedes platums
3.59 m
3.59 m
Cēlājvadu vilkšana
88.2 kN
88.2 kN
TSG
81,724 kg
81,724 kg
Izmēri
14.0 m L x 3.59 m W x 3.97 m H
14.0 m L x 3.59 m W x 3.97 m H
Dzinējs
Cummins B6.7
Lejupielādēt specifikācijuCummins B6.7
