HK 4.070-1

Produkta apraksts

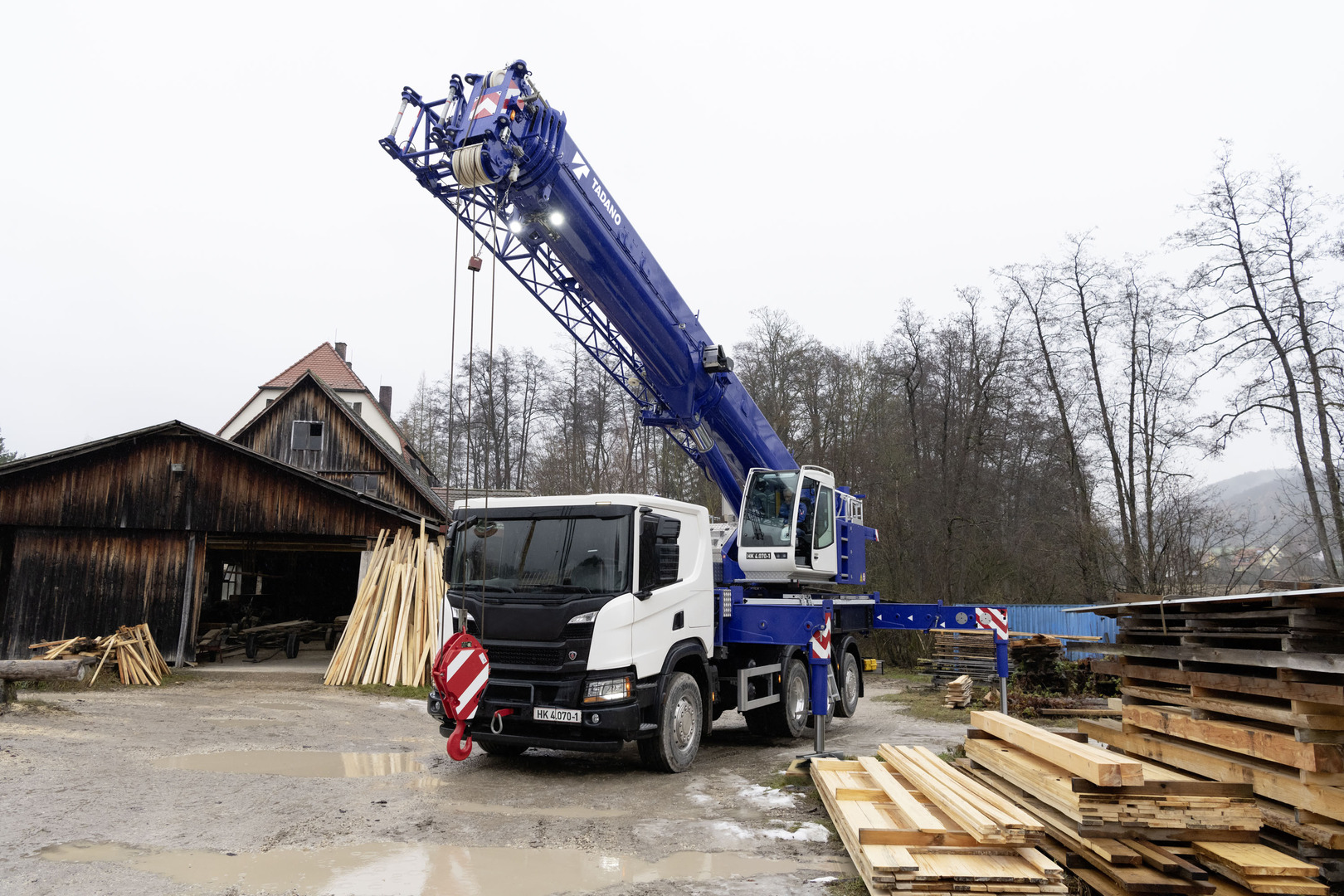

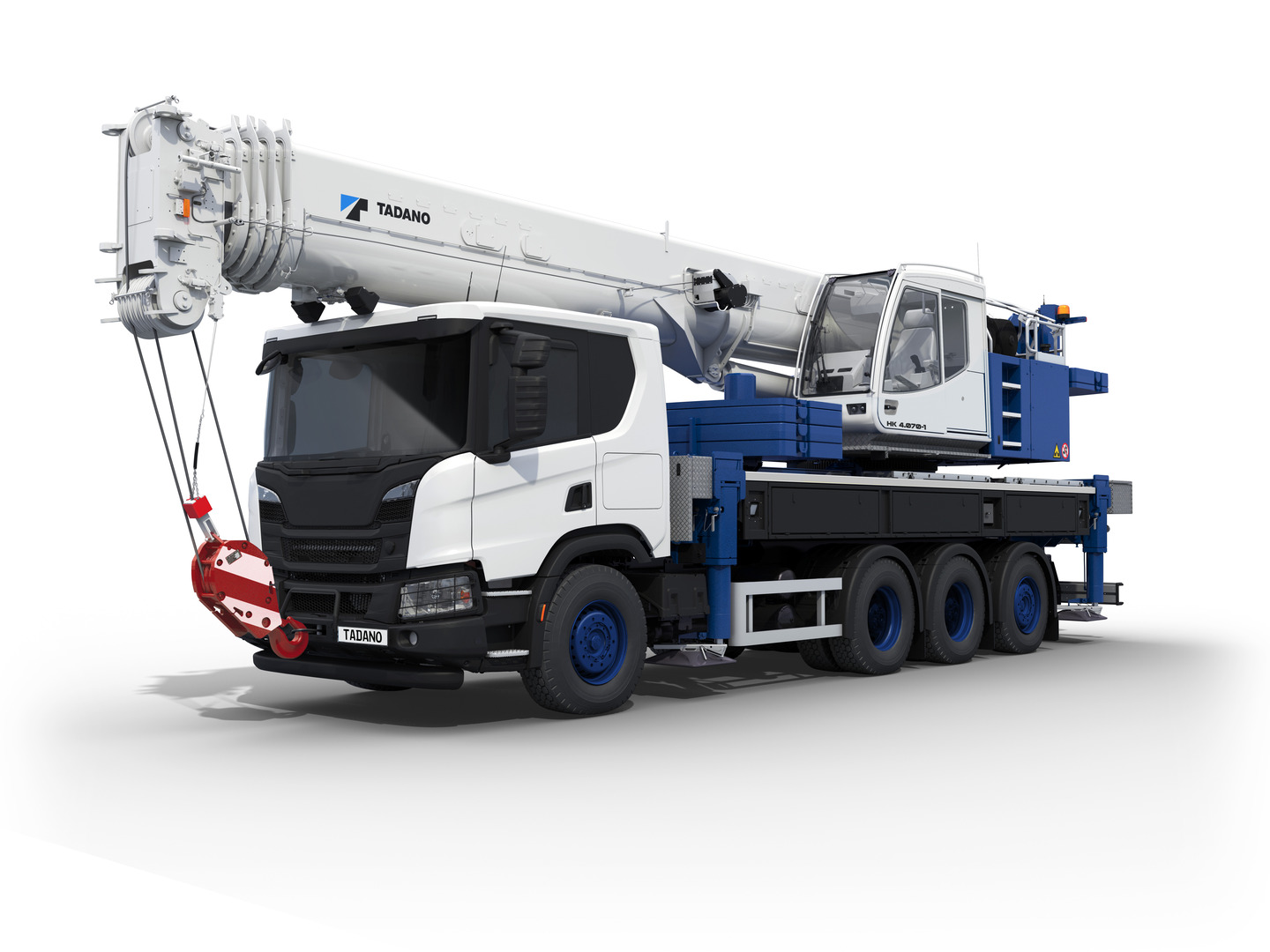

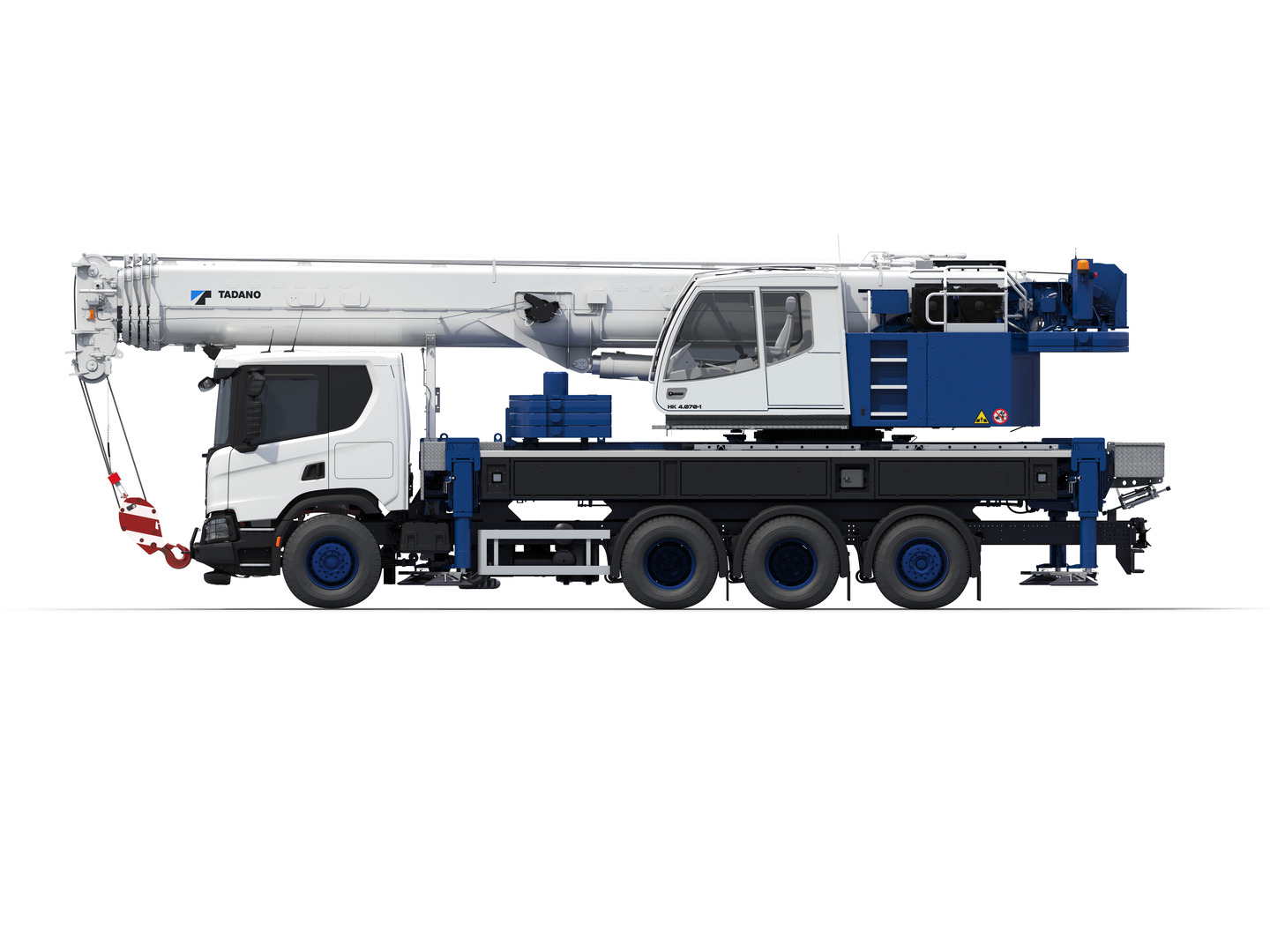

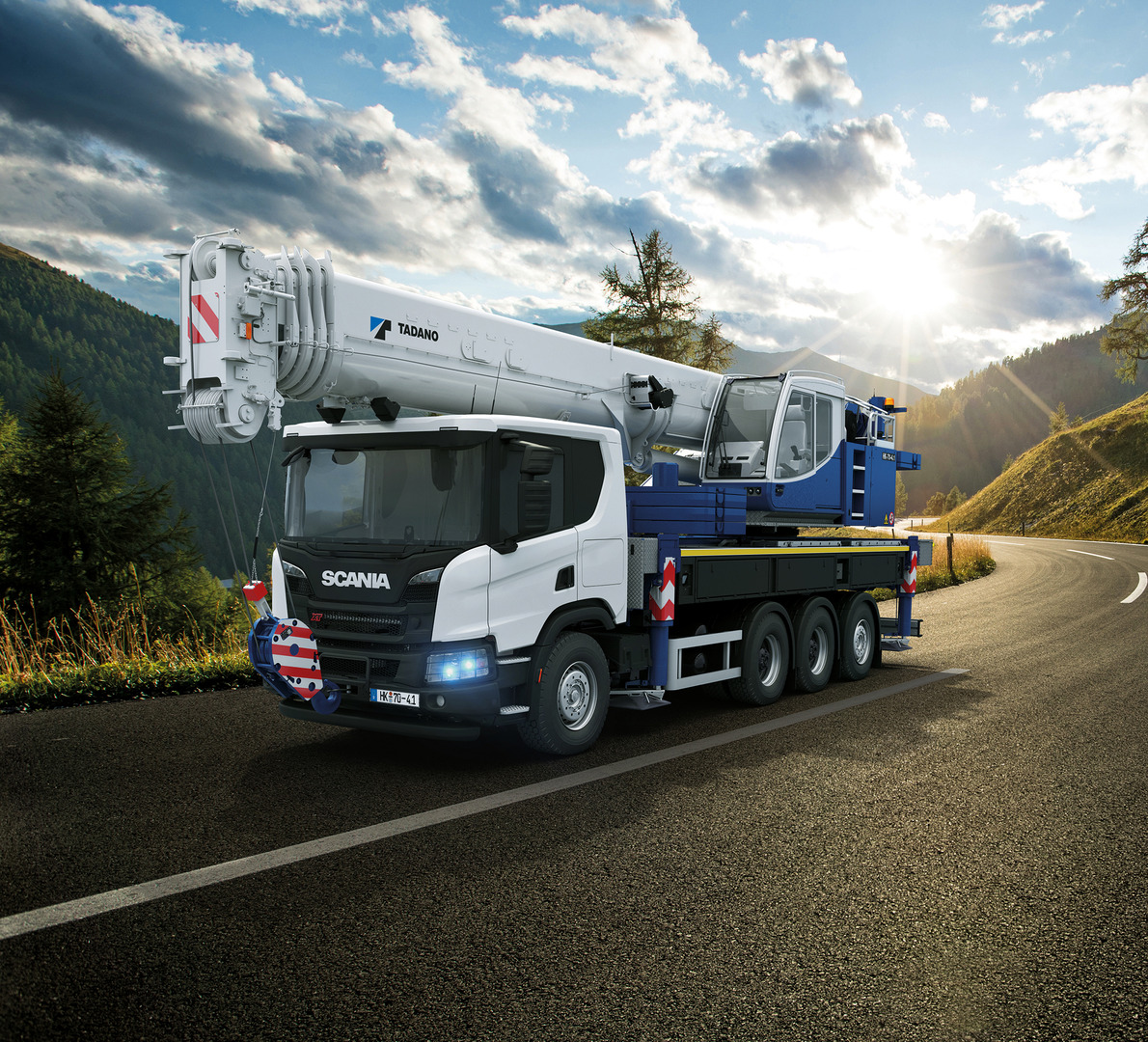

An all-rounder on a truck: Put the HK 4.070-1 to the test! A tridem rear axle with a steered trailing axle enables the HK 4.070-1 to achieve minimal turn radii. The air-ride rear axles ensure extraordinary stability. In addition, two drive axles provide optimum traction. With H-style outriggers and five outrigger bases, the HK 4.070-1 is also perfectly suited to narrow prefab home work sites. It can optionally come with its own trailer, fully loaded with a counterweight of 7.1 tonnes. The crane can travel to the worksite with a total counterweight of 15.2 tonnes. A maximum total vehicle combination weight of 41.8 tonnes makes it possible to travel with a simplified special permit.

Preces specifikācija

Galvenā masta garums
10.4 m – 41 m
Mastu pagarinājums
1.6 m / 8.8 m / 15.8 m
Maksimālais pacelšanas augstums
60 m
Iztvērēju bāzes
6.94 m x 6.85 m
Cēlājvadu vilkšana
44 kN
Maksimālais rādiuss
44 m
Izmēri
L: 11.81 m W: 2.55 m H: 3.94 m
Asis
4
Dzinējs
Mercedes-Benz
Piedziņa
8 x 4
