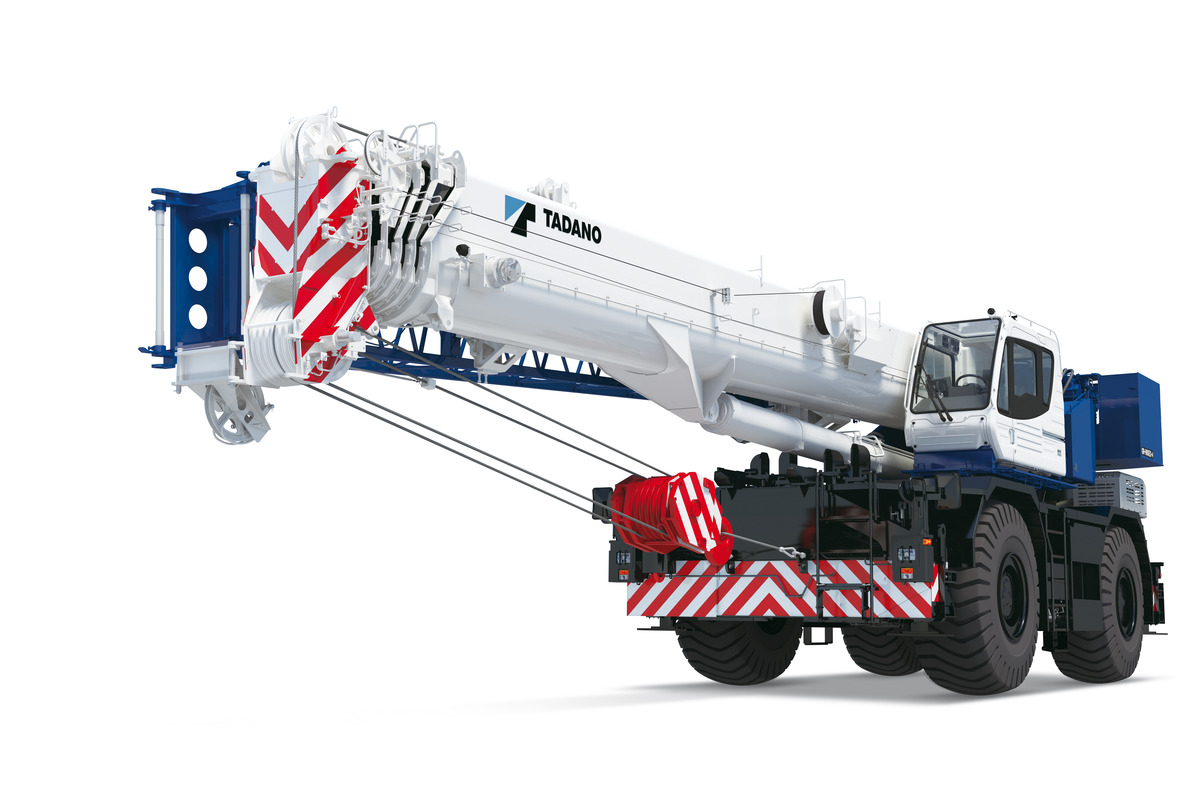

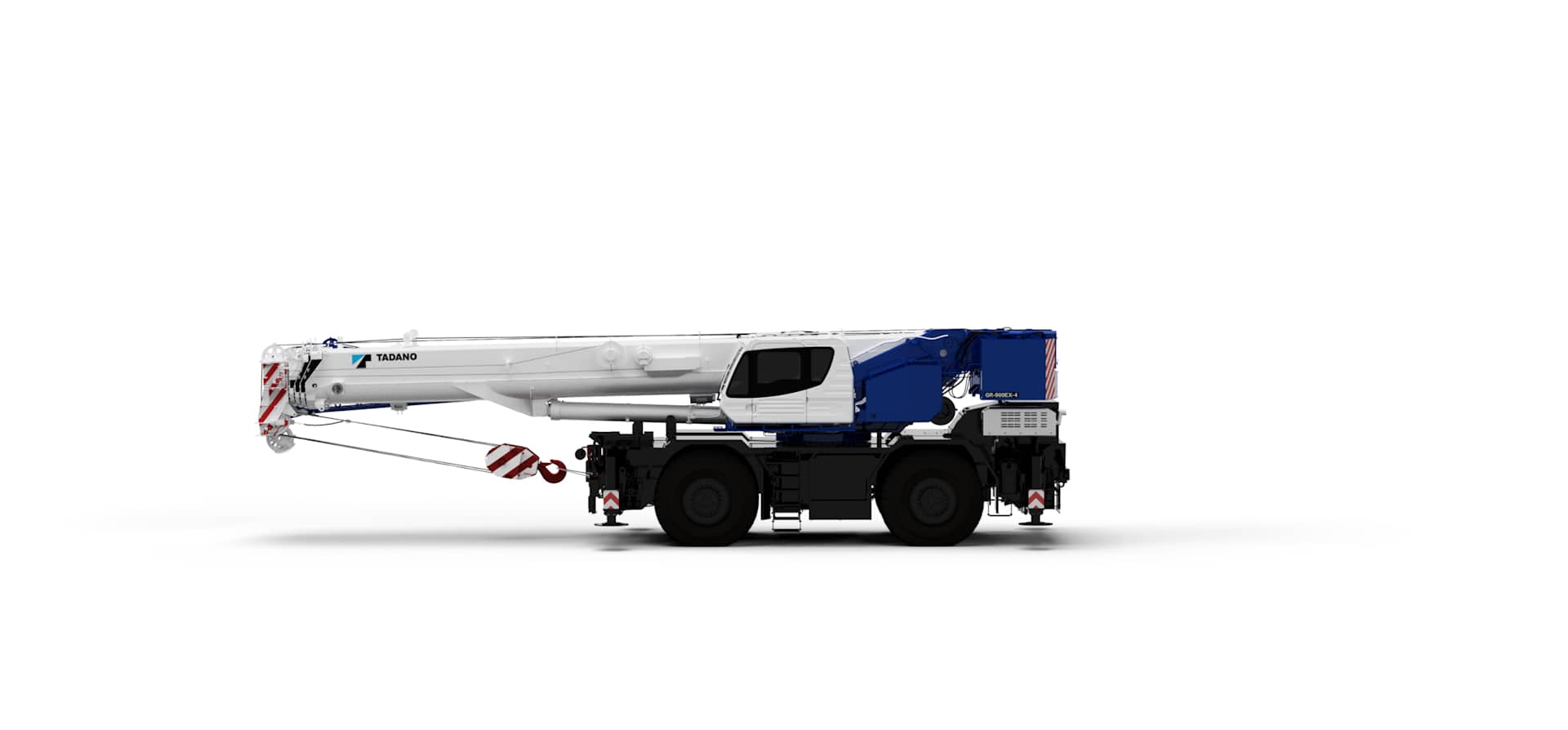

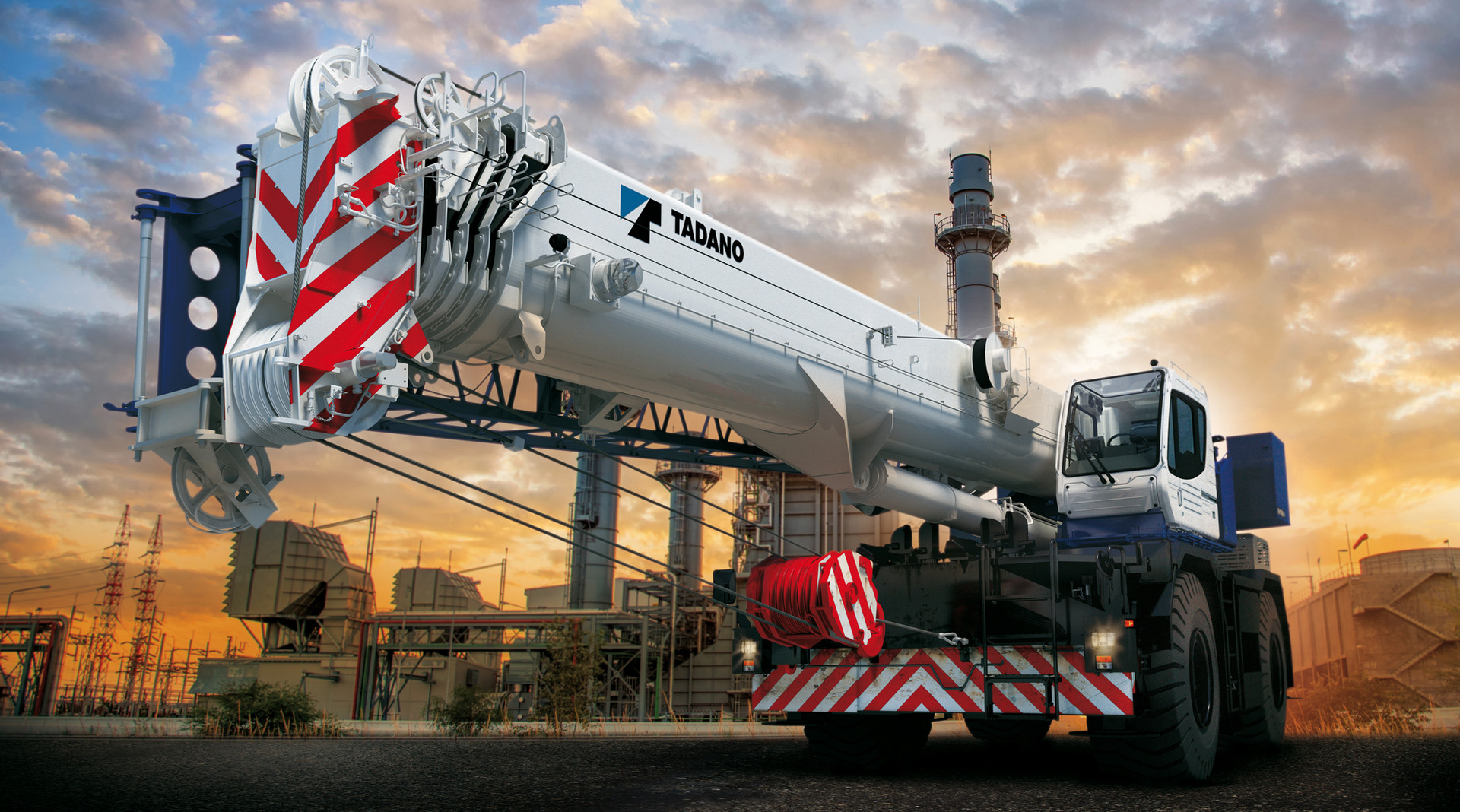

GR-900EX-4
Produkta apraksts
Reliability with 90 Tonnes of Capacity If it’s not broken, don’t fix it! The GR-900XL-4 was fully redesigned (not fixed, but redesigned) in 2020 and looks ahead with confidence, boasting its 90.7t of capacity. The new GR-900XL-4 kept the same boom and jib specs as its predecessor, making for a smooth transition. In a world first, this crane has a new Smart Counterweight set up which allows the crane to place the counterweight in two positions which will now boost the radius of the crane substantially.
Preces specifikācija
Ietilpības klase
90 t
90 t
Galvenā masta garums
12.0 m – 47.0 m
12.0 m – 47.0 m
Mastu pagarinājums
10.1 m / 17.7 m
10.1 m / 17.7 m
Maksimālais pacelšanas augstums
65 m
65 m
Maksimālais pretsvārstekļu svars
9.1 t
9.1 t
Cēlājvadu vilkšana
89.1 kN
89.1 kN
Maksimālais rādiuss
52.0 m
52.0 m
Izmēri
14.38 m L x 3.32 m W x 3.81 m H
14.38 m L x 3.32 m W x 3.81 m H
Asis
2
2
Dzinējs
Cummins
Cummins
Piedziņa
4x4x4
Lejupielādēt specifikāciju4x4x4
