GTC-350
Produkta apraksts

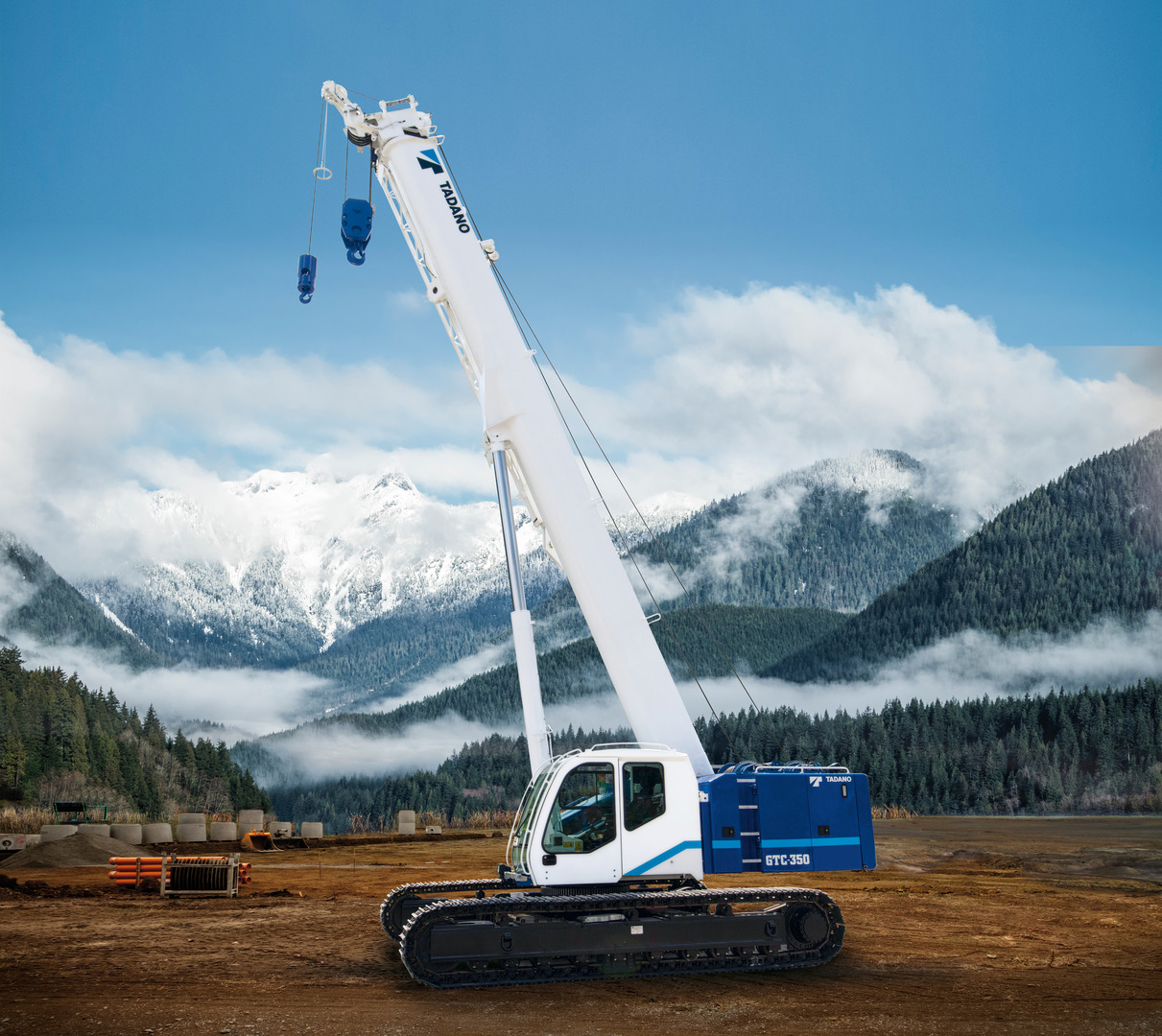

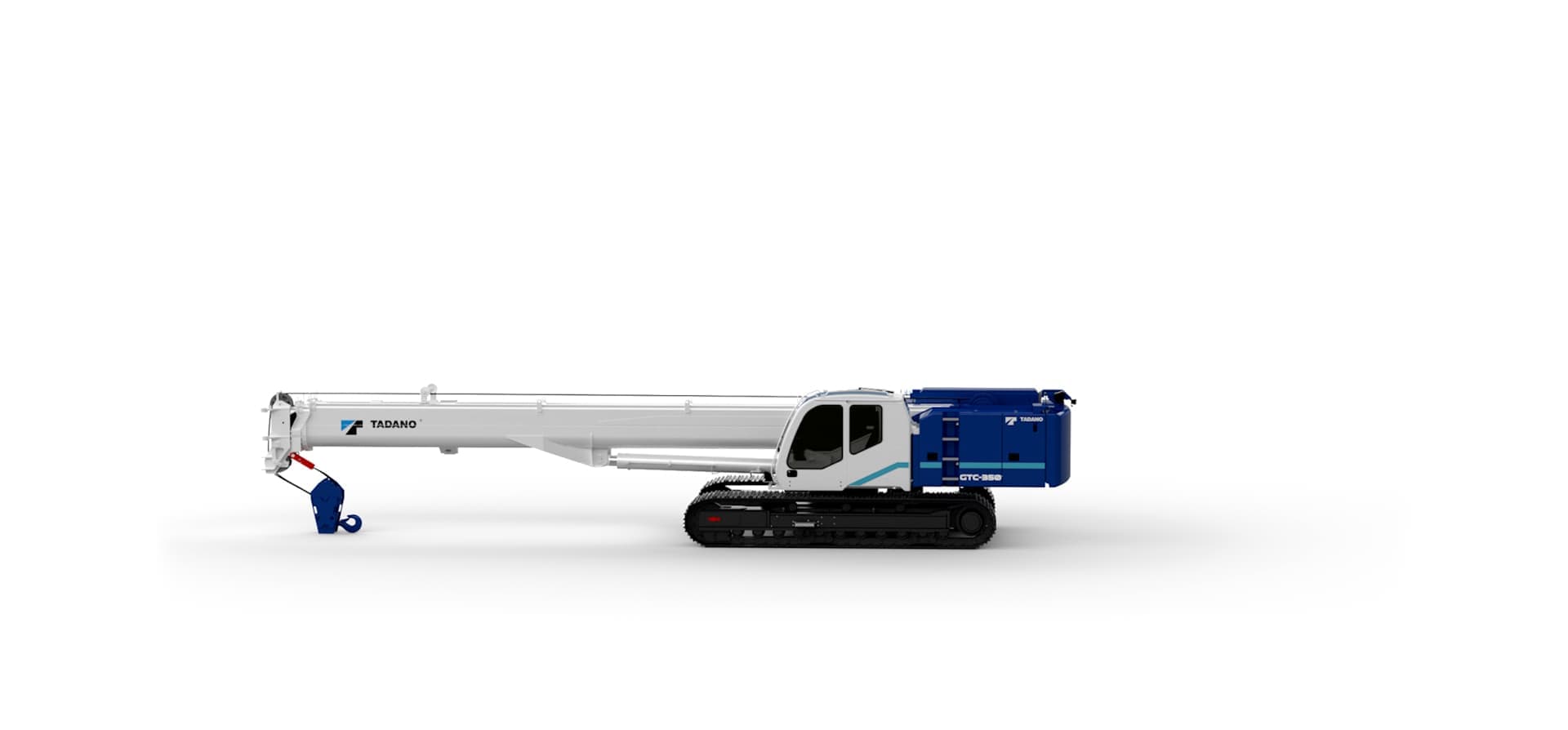

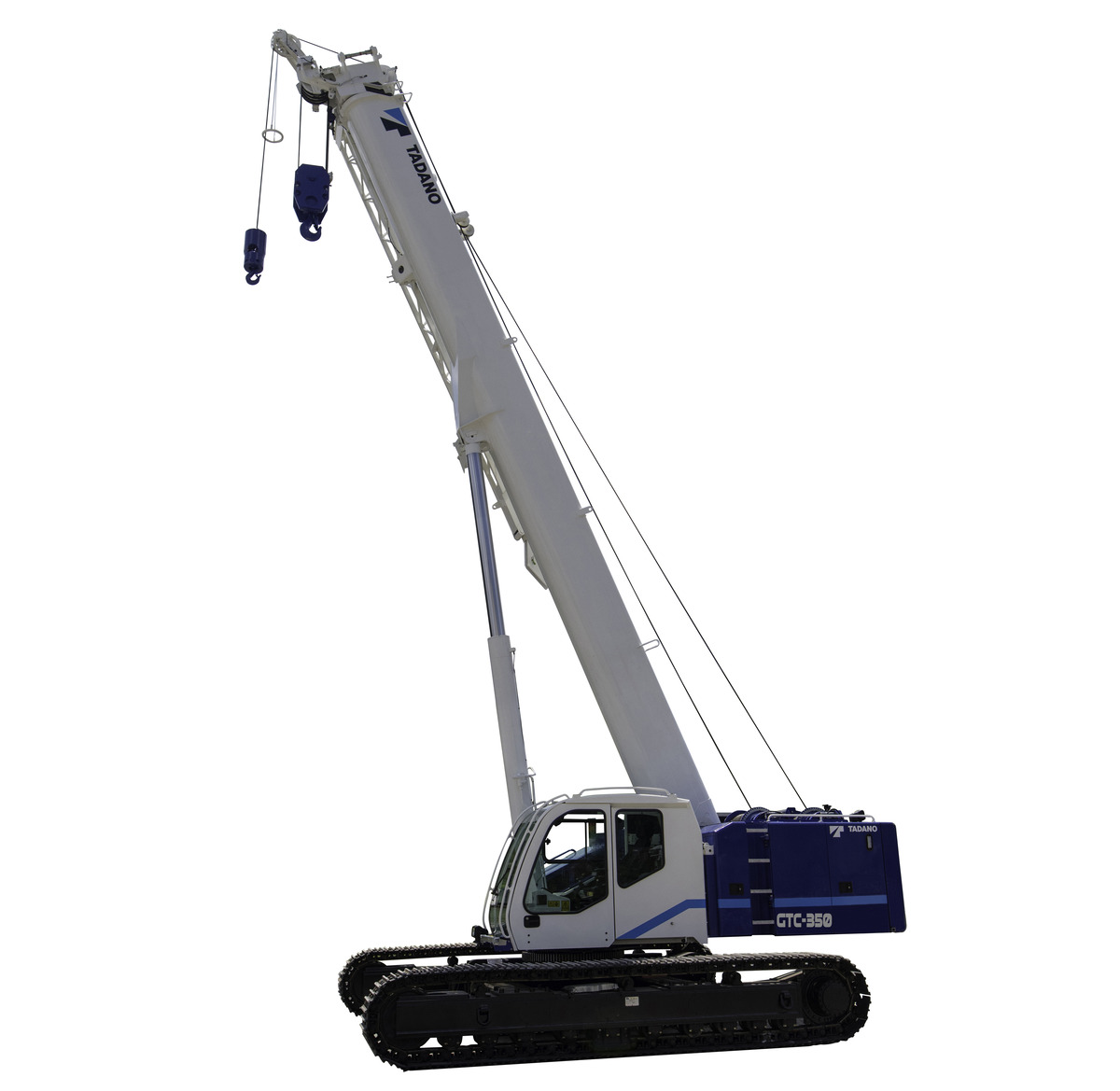

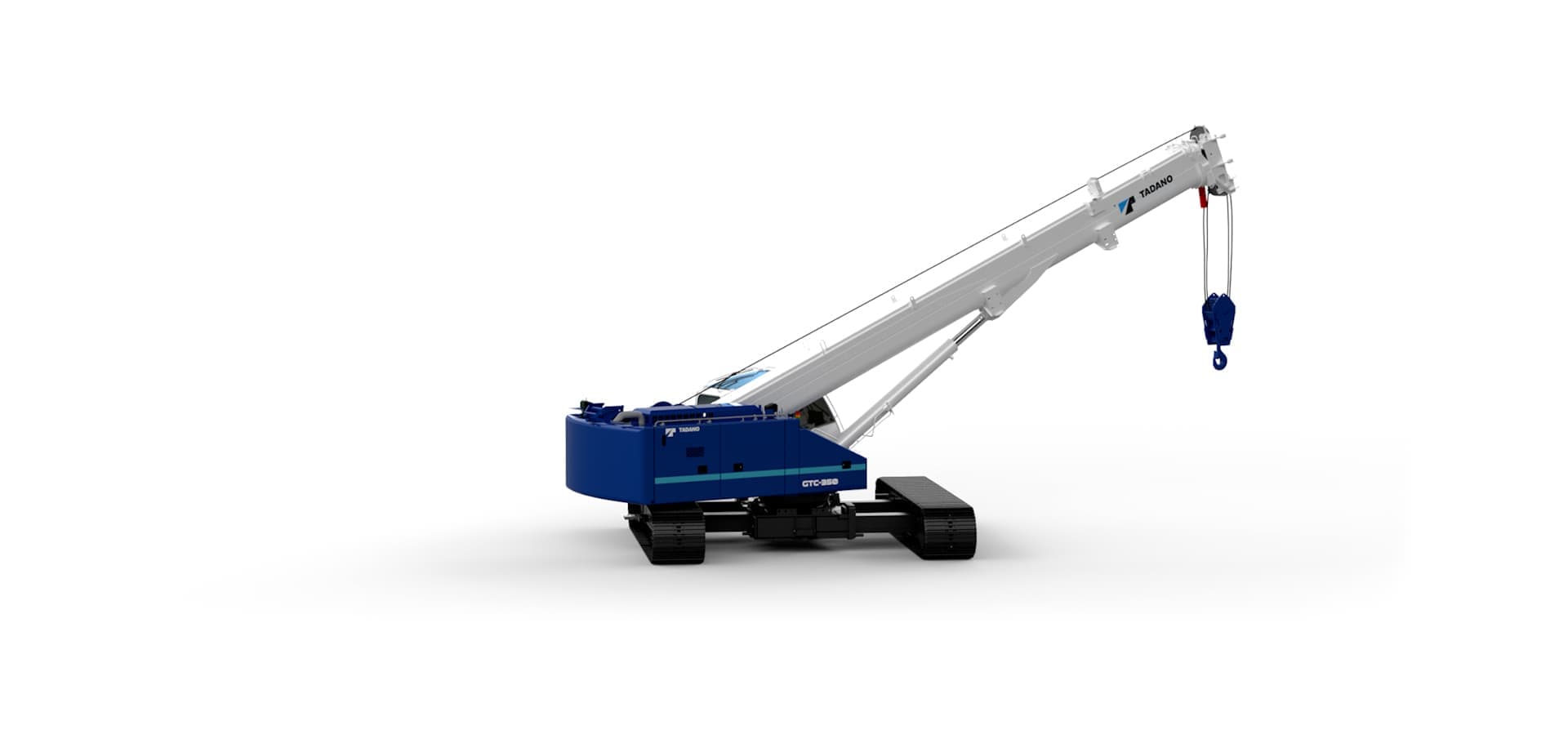

Continuous Telescoping with High Lifting Capacities The GTC-350 is a 35t capacity crane with a 3-section full power boom that allows continuous telescoping with load to the maximum extended length of 27.2m. The boom is purpose designed for the GTC series crane and manufactured by Tadano Japan to give high lifting capacities as well as being suited for heavy duty work such as foundation, pick-and-carry, and work on slopes up to 4°. The long main boom is complemented with a 7.2m – 12.8m extendible jib that offsets at 5°, 25°, or 45° for a maximum tip height of 38.9m. Load charts for jib operation allow for lifting on slopes up to 2.5°.
Preces specifikācija
Ietilpība
35 t
35 t
Maksimālais slodzes moments
93.5 tm
93.5 tm
Galvenā masta garums
10.9 m – 27.2 m
10.9 m – 27.2 m
Mastu pagarinājums
7.2 m – 12.8 m
7.2 m – 12.8 m
Maksimālais pacelšanas augstums
40 m
40 m
Maksimālais pretsvārstekļu svars
5,681 kg
5,681 kg
Izplestās sliedes platums
4.8 m
4.8 m
Savilktās sliedes platums
3.0 m
3.0 m
Cēlājvadu vilkšana
59.2 kN
59.2 kN
Maksimālais rādiuss
38 m
38 m
TSG
32,432 kg
32,432 kg
Izmēri
13.2 m L x 3.0 m W x 2.5 m H
13.2 m L x 3.0 m W x 2.5 m H
Dzinējs
Cummins
