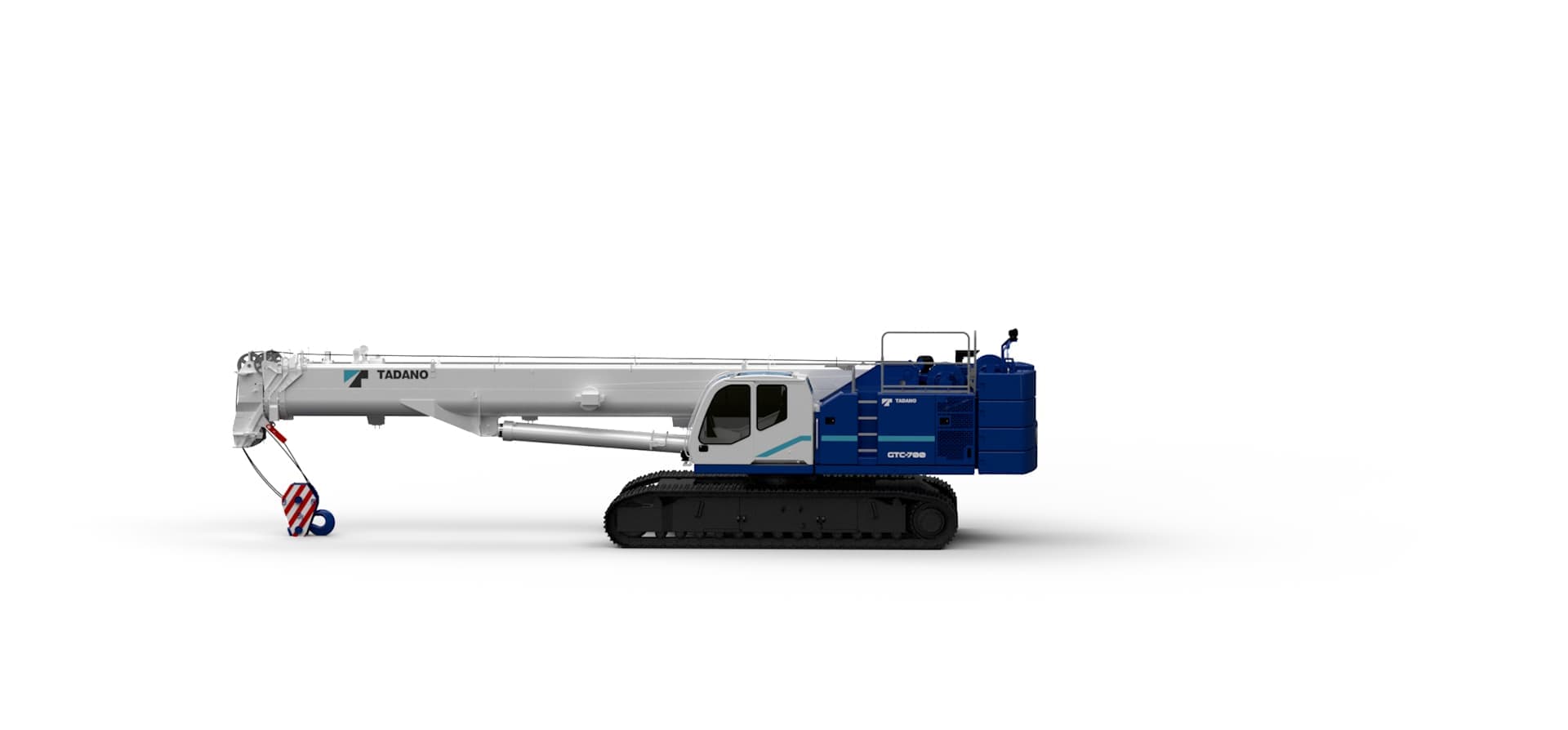

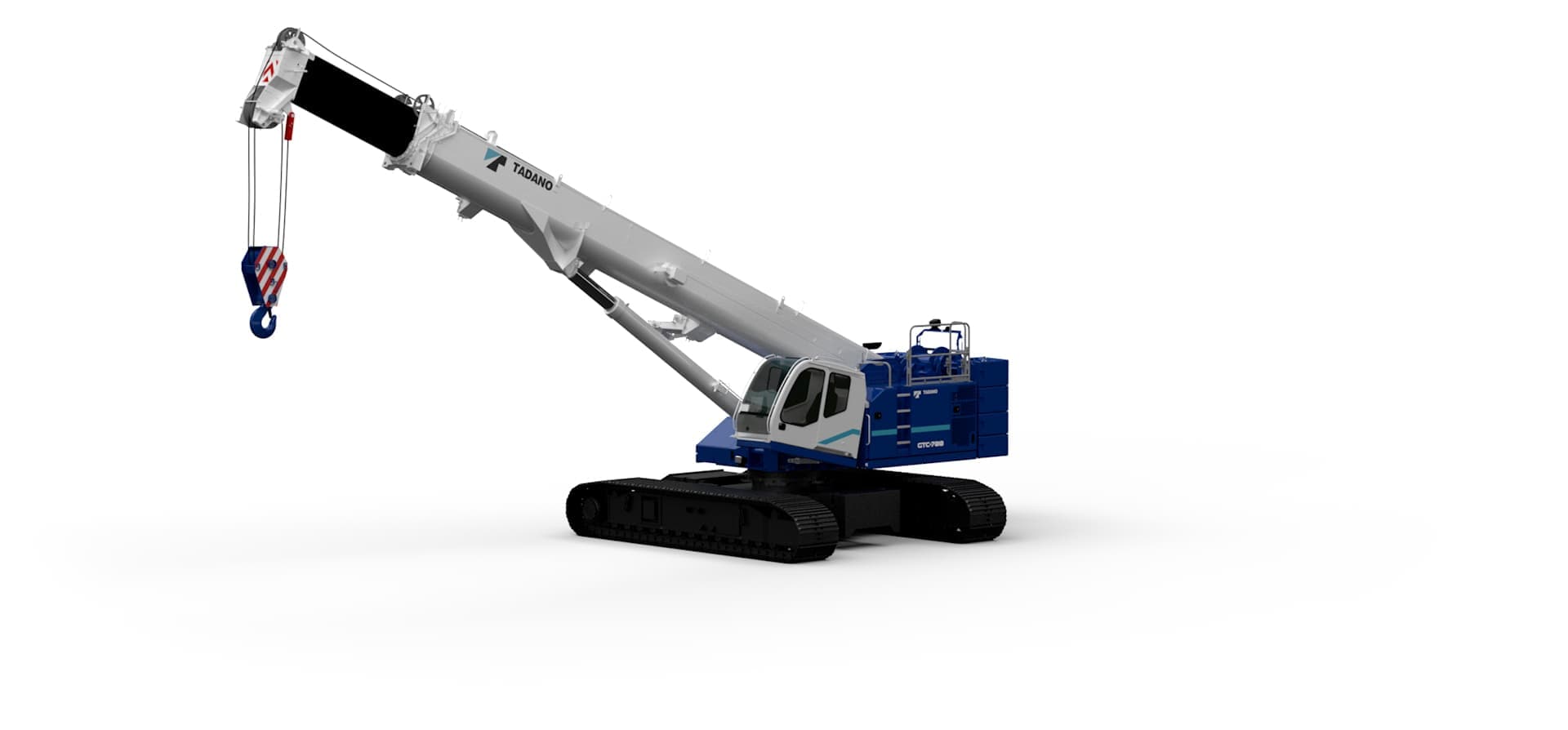

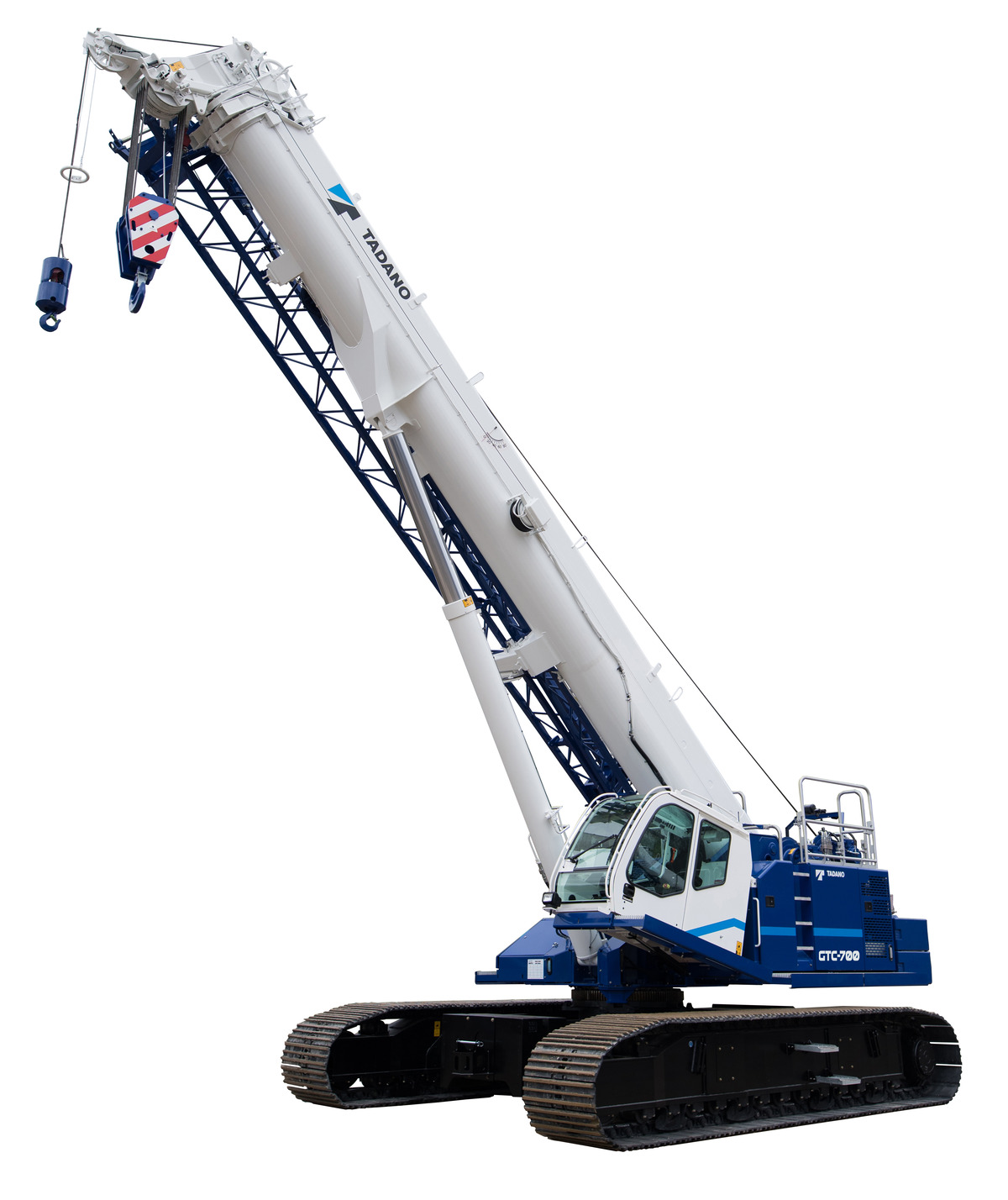

GTC-700
Produkta apraksts
Power through foundation, out-of-level, or pick-and-carry work The GTC-700 is a 70t capacity machine with a full power, 4‐section 11.5m – 36m hydraulic boom designed to perform exceptionally well for lift work, while also being capable of out‐of‐level, pick‐and‐carry, and foundation work. The main boom is complemented with a 10.1m / 17.7m bi‐fold jib that offsets at 3.5°, 25°, and 45°. The maximum tip height with the jib erected is 53.7m. An optional 2.5m heavy lift jib with a maximum capacity of 20.3t that offsets at 3.5° and 30° is also available.
Preces specifikācija
Ietilpība
70 t
70 t
Galvenā masta garums
11.5 m – 36.0 m
11.5 m – 36.0 m
Maksimālais pacelšanas augstums
55.2 m
55.2 m
Maksimālais pretsvārstekļu svars
13,608 kg
13,608 kg
Izplestās sliedes platums
4.92 m
4.92 m
Savilktās sliedes platums
3.27 m
3.27 m
Cēlājvadu vilkšana
88.2 kN
88.2 kN
TSG
63,387 kg
63,387 kg
Izmēri
14.03 m L x 3.27 m W x 3.89 m H
14.03 m L x 3.27 m W x 3.89 m H
Dzinējs
Cummins QSB6.7
Lejupielādēt specifikācijuCummins QSB6.7
